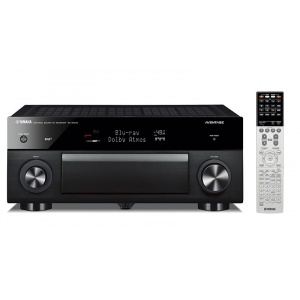

Caracteristici importante ale receiverului Yamaha RX-A1070:
Dolby Atmos® and DTS:X™ with CINEMA DSP HD3
CINEMA DSP HD3 with Rear VPS (Virtual Presence Speaker)
New CINEMA DSP Programme: Enhanced
AVENTAGE AV receivers: Designed to deliver the highest levels of audio performance
Aluminium front panel offers visual and aural benefits
Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
Advanced design feet enhance strength and vibration resistance
Symmetrical power amp layout, H-shape cross member frame and rigid chassis with additional bottom frames
Professional quality digital audio by ESS DAC
MusicCast for audio enjoyment in every room
7-channel powerful surround sound
--- 110 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
--- 165 W per channel (8 ohms, 1 kHz, 10% THD, 1-ch driven)
--- 170 W per channel (4 ohms, 1 kHz, 0.9% THD, 1-ch driven)
Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
Bluetooth® for wireless music streaming and Compressed Music Enhancer for Bluetooth
AirPlay®, Spotify®*, Pandora®*, Napster®*, Tidal*, Deezer*, Qobuz*, JUKE* music streaming service
*Music service availability varies by region.
DAB / DAB+ tuner for enjoying high quality digital radio broadcasts
DSD 2.8 MHz / 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple® Lossless 96 kHz / 24-bit playback
High-resolution Music Enhancer further heightens musicality from the original content
HDMI® (8 in / 2 out) with 4K Ultra HD full support, HDR Video including Dolby Vision and Hybrid Log-Gamma, and BT.2020
HDMI input on front panel, Front panel USB digital connection for USB flash drives
YPAO™-R.S.C. sound optimisation with 64-bit precision EQ calculation and multi-point measurement
YPAO Volume to ensure natural sounds even at low volume
HDMI Zone Switching allows different HD audio / video sources playback in different rooms
Detachable AC power cord for easier installtion
Specificatii tehnice receiver Yamaha RX-A1070:
Sectiunea amplificare:
Numar canale 7.2
Rated Output Power (1kHz, 1ch driven) 170 W (4 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 110 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 165 W (8 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 135 / 165 / 210 / 280 W
Procesare surround:
Cinema DSP Yes (HD3)
DSP Programs 24
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker Yes
Dialogue Lift Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby Atmos Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Surround Yes
DTS:X Yes
DTS-HD Master Audio Yes
Facilitati audio:
Pure direct Yes (with video on mode)
Compressed Music Enhancer Yes
High-resolution Music Enhancer Yes
YPAO multi-point measurement Yes with R.S.C. (Reflected Sound Control) and 64-bit Precision EQ Calculation
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (ESS)
Facilitati video:
4K Ultra HD pass-through and upscaling Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough Yes
HDMI Audio Return Channel Yes
HDMI upscaling Yes (Analogue to HDMI® / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Conectivitate:
HDMI in / out 8 / 2 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CEC Yes (SCENE, Device Control)
USB Input USB Memory, Portable Audio Player
Network Port Yes
Wi-Fi Yes (with Wireless Direct)
AirPlay Yes
Bluetooth Yes (SBC / AAC)
Front AV Input HDMI / USB / Analogue Audio
Digital Audio Input/Output: Optical 3 / 0
Digital Audio Input/Output: Coaxial 3 / 0
Analog Audio Input/Output 9 (front 1) / 0
Phono Input Yes
Component Video Input/Output 2 / 0
Composite Video Input/Output 4 / 0
Preout 7.2-ch
Headphone Output 1
Tuner FM, DAB
Interfata:
On screen display Graphical User Interface
SCENE SCENE PLUS (12 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes
Remote Control Unit Yes (Preset)
Zone control:
Zone 2 audio out: Preout / HDMI
Powered Zone Zone 2
Zone Video Output HDMI / Component / Composite
Zone HDMI Yes (HDMI Zone Switching)
Zone B Output HDMI
RS-232C Interface Yes
+12V Trigger Output 2
Remote (IR) Input/Output 1 / 1
Party Mode Yes
General:
Consum standby ≤0.1W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 435 x 182 x 439 mm (with antenna up: 435 x 247 x 439 mm); 17-1/8" x 7-1/8" x 17-1/4" (with antenna up: 17-1/8" x 9-3/4" x 17-1/4")
Weight 14.9 kg
